Description

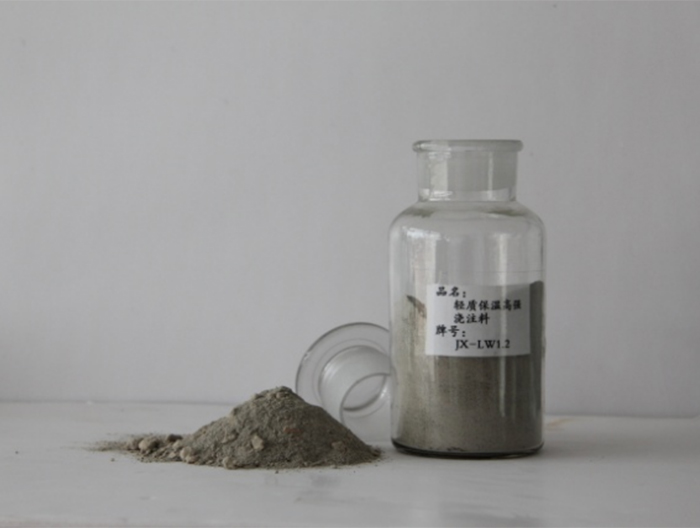

The JH-LW Lightweight Castable Series is engineered for thermal equipment operating conditions, featuring scientifically balanced bulk density ranging from 0.6 to 2.0 g/cm³ combined with high structural strength. These castables significantly reduce energy consumption and environmental impact during high-temperature operation, delivering substantial economic benefits. Available in nine grades spanning maximum service temperatures from 800°C to 1350°C, with Al₂O₃ content from 25% to 45%, the series has been successfully deployed in over 100 facilities including Baowu, Wugang, Magang, TISCO, and Jianlong Steel, powering more than 500 reheating furnaces worldwide.
Key Features
- Nine grade options (JH-LW-0.6 to JH-LW-2.0) covering bulk densities from 0.6 to 2.0 g/cm³
- High structural strength ensures durability under thermal cycling and mechanical stress
- Optimized insulating properties reduce heat loss and lower fuel consumption
- Maximum service temperatures ranging from 800°C to 1350°C for diverse furnace applications
- Proven track record with over 500 reheating furnace installations across major steel producers
Application
- Reheating furnaces in steel mills, including pusher and walking-beam designs
- Industrial heat treatment furnaces requiring thermal insulation
- Lining insulation for various thermal equipment in iron and steel production
- Energy-saving insulation layers in continuous casting and rolling mill heating systems
- High-temperature industrial kilns and furnace linings in metallurgical facilities
Technical Specifications
Physical and chemical performance indicators of the Lightweight Castable
| Grade | JH-LW-0.6 | JH-LW-0.8 | JH-LW-1.0 | JH-LW-1.2 | JH-LW-1.3 |
| Al2O3 (%) | 25 | 25 | 28 | 30 | 35 |
| Bulk Density (g/cm3) at 110°C×16h | 0.6±0.1 | 0.8±0.1 | 1.0±0.1 | 1.2±0.1 | 1.3±0.1 |
| Permanent Linear Change (% at 1200°C×3h) | – | -1.0~0 | -1.0~0 (1000°C×3h) | -1.0~0 | -1.0~0 |
| Cold Crushing Strength (MPa) at 110°C×16h | – | 1 | 3 | 4 | 5 |
| Cold Crushing Strength (MPa) at 1200°C×3h | – | 1 | 3 | 4 | 6 |
| Thermal Conductivity W/(m·K) at 700°C | 0.25 | 0.28 | 0.35 | 0.4 | 0.45 |
| Max Service Temperature (°C) | 800 | 900 | 1000 | 1200 | 1200 |
| Packaging | 25kg/bag + ton bag, Moisture-proof, Shelf life: 6 months | 25kg/bag + ton bag, Moisture-proof, Shelf life: 6 months | 25kg/bag + ton bag, Moisture-proof, Shelf life: 6 months | 25kg/bag + ton bag, Moisture-proof, Shelf life: 6 months | 25kg/bag + ton bag, Moisture-proof, Shelf life: 6 months |
Physical and chemical performance indicators of the Lightweight Castable
| Grade | JH-LW-1.5 | JH-LW-1.65 | JH-LW-1.8 | JH-LW-2.0 |
| Al2O3 (%) | 35 | 40 | 42 | 45 |
| Bulk Density (g/cm3) at 110°C×16h | 1.5±0.1 | 1.65±0.1 | 1.8±0.1 | 2.0±0.1 |
| Permanent Linear Change (% at 1300°C×3h) | -1.0~0 (1250°C×3h) | -1.0~0 | -1.0~0 | -0.5~+0.5 (1350°C×3h) |
| Cold Crushing Strength (MPa) at 110°C×16h | 5 | 7 | 12 | 18 |
| Cold Crushing Strength (MPa) at 1300°C×3h | 10 | 10 | 15 | 25 |
| Thermal Conductivity W/(m·K) at 700°C | 0.5 | 0.6 | 0.7 | 0.75 |
| Max Service Temperature (°C) | 1250 | 1250 | 1300 | 1350 |
| Packaging | 25kg/bag + ton bag, Moisture-proof, Shelf life: 6 months | 25kg/bag + ton bag, Moisture-proof, Shelf life: 6 months | 25kg/bag + ton bag, Moisture-proof, Shelf life: 6 months | 25kg/bag + ton bag, Moisture-proof, Shelf life: 6 months |
