Description

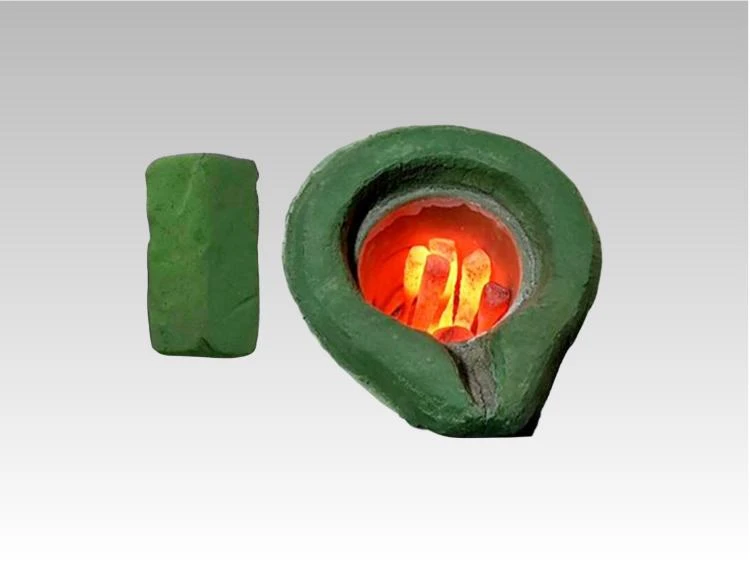

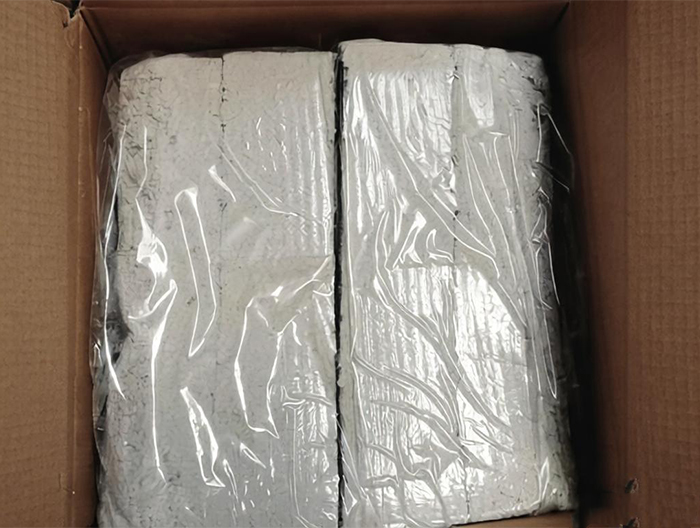

The JH‑PAK series provides phosphate‑bonded high‑alumina plastic refractories designed for rapid hot repair, spout and mouth patching, and new‑lining installation in coreless induction furnaces, hot‑metal ladles and molten‑metal transfer equipment.
JH‑PAK‑S86CR contains 76.3 % Al₂O₃, 11.1 % SiO₂, 2.5 % P₂O₅ and 3.7 % Cr₂O₃, achieving strong spalling resistance, high sintered strength and erosion resistance at a maximum service temperature of 1760 °C. JH‑PAK‑A85 is a phosphate‑bonded grade with 68.6 % Al₂O₃, offering high spalling resistance and high mechanical strength, specifically engineered as the preferred material for furnace collar, mouth and spout sealing on coreless induction furnaces.
JH‑PAK‑A56W is a phosphorus‑free plastic refractory that uses an inorganic high‑temperature binder and a gas/solid setting mechanism, providing erosion resistance up to 1760 °C while protecting stainless steel, carbon steel and high‑temperature alloy melts from phosphorus contamination. All JH‑PAK grades can be installed by pneumatic ram or hand tamp, offering flexibility for on‑site repairs and new‑lining projects on ladles and transfer equipment.
Key Features
- JH-PAK-S86CR is a phosphate‑bonded high‑alumina plastic with Cr₂O₃, offering strong spalling resistance up to 1760 °C for hot repair.
- JH-PAK-A85 combines phosphate bonding with 68.6 % Al₂O₃, delivering high spalling resistance and strength for furnace collar, mouth and spout sealing.
- JH-PAK-A56W is phosphorus‑free, using an inorganic high‑temperature binder to protect steel quality while providing erosion resistance up to 1760 °C.
- All three grades support pneumatic ram or hand tamp installation, allowing flexible application on coreless induction furnaces, ladles, and transfer equipment.
- Grain size of 5 mm for S86CR and A85, and 3 mm for A56W, optimizes packing density and sintering behavior for each formulation.
Application
- Hot repair of coreless induction furnace walls and roofs using JH-PAK-S86CR for rapid, durable restoration under high thermal stress.
- Sealing and patching of furnace collar, mouth, and spout on coreless induction furnaces with JH-PAK-A85 to maintain melt integrity.
- New lining installation and repair of hot‑metal ladles and molten‑metal transfer equipment using phosphate‑bonded grades for extended service life.
- Phosphorus‑free sealing of coreless induction furnaces handling stainless steel, carbon steel, and high‑temperature alloy melts with JH-PAK-A56W to avoid contamination.
- Suitable for both pneumatic ram and hand tamp installation methods, enabling efficient on‑site application across diverse furnace geometries.
Technical Specifications
The tables below list chemical composition, bulk density, grain size, maximum working temperature and installation method for each JH-PAK grade.
| Chemical Composition [%] | JH-PAK-S86CR | JH-PAK-A85 | JH-PAK-A56W |
| Al₂O₃ | 76.3 | 68.6 | 84.5 |
| Cr₂O₃ | 3.7 | ||
| SiO₂ | 11.1 | 25.5 | 3.7 |
| P₂O₅ | 2.5 | 2.7 |
| Technical Data | JH-PAK-S86CR | JH-PAK-A85 | JH-PAK-A56W |
| Bulk Density (g/cm³) | 2.92 | 2.56 | 2.4 |
| Max Grain Size (mm) | 5 | 5 | 3 |
| Max Working Temp (°C) | 1760 | 1750 | 1760 |
| Installation Method | Pneumatic Ram or Hand Tamp | Pneumatic Ram or Hand Tamp | Pneumatic Ram or Hand Tamp |
